Unlocking the Subsea: Why Radio Fails Underwater and How Acoustic Networks Illuminate the Deep

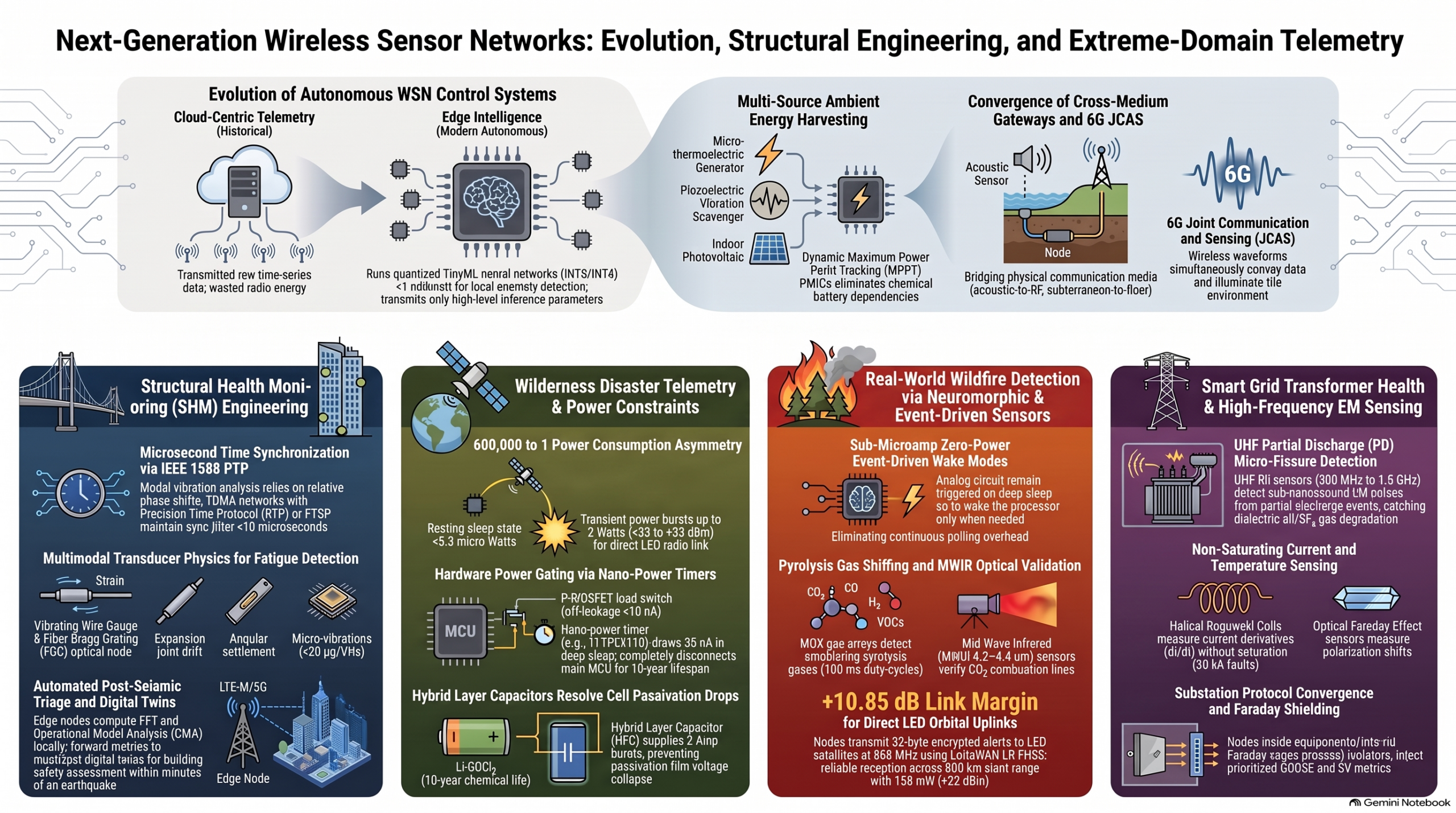

Modern Wireless Sensor Networks and Edge IoT Systems

The Subsea Communication Paradox: Why Radio and Light Fail

Learning Objectives

Understand the physical and chemical mechanisms that cause electromagnetic wave attenuation in seawater.
Compare the physical profiles, transmission ranges, and usable bandwidths of Radio Frequency (RF), Optical, and Acoustic carriers underwater.
Analyze why mechanical pressure waves serve as the primary wireless carrier in marine environments.

In our everyday world, wireless communication feels frictionless. High-frequency electromagnetic waves—such as Wi-Fi, cellular signals, and Bluetooth—carry gigabytes of information through the atmosphere at the speed of light. However, the instant a sensor package is submerged beneath the ocean surface, these terrestrial wireless standards fail. The ocean presents a fundamental physical dilemma: the electromagnetic spectrum that powers modern civilization is absorbed or scattered within centimeters to meters of entering seawater, forcing marine scientists and cyber-physical system engineers to rely on mechanical pressure waves—sound—to illuminate the deep ocean.

              ┌─────────────────────────────────────────────────────────┐
              │                 THE SUBSEA SEAWAWALL                    │
              └─────────────────────────────────────────────────────────┘

ELECTROMAGNETIC CARRIERS MECHANICAL CARRIER
┌───────────────────────┐ ┌───────────────────┐
│ Radio Frequency (RF) │ ──> Absorbed by Free Ions │ │
│ (Wi-Fi, 4G/5G, BLE) │ (Ohmic Loss) │ Acoustic Waves │
├───────────────────────┤ │ (Pressure Waves) │ ──> Travels
│ Optical (Blue-Green) │ ──> Scattered by Turbidity │ │ Kilometers!
│ (Laser / High-Power) │ and Bio-Particles │ │
└───────────────────────┘ └───────────────────┘

Thought Experiment: The Swimming Pool vs. The Open Ocean Imagine sitting at the edge of a swimming pool with a smartphone underwater and an RF receiver submerged at the far end. Even across a few meters of clear water, the Wi-Fi connection drops instantly. Why does a signal that easily penetrates concrete walls on land vanish almost immediately in pure, clean-looking water? The answer lies in dissolved salts and ionic conduction.

The physical behavior of different wave carriers in seawater highlights why electromagnetic options collapse:

Radio Frequency (RF) Waves: Terrestrial wireless networks depend on high-frequency electromagnetic fields. However, seawater is an electrolyte saturated with dissolved salt ions (\text{Na}^+, \text{Cl}^-), yielding a high electrical conductivity (\sigma \approx 4\text{ S/m}). When an electromagnetic wave enters this conductive medium, it induces free ionic currents that convert RF energy into heat through ohmic dissipation. The attenuation coefficient scales directly with frequency (\text{RF Attenuation} \propto \sqrt{\omega \cdot \mu \cdot \sigma}), causing standard RF energy in the \text{MHz} or \text{GHz} bands to decay within centimeters. While Very Low Frequency (VLF, 3–30\text{ kHz}) radio waves can penetrate tens of meters, they require massive transmitters consuming kilowatts of power to achieve bitrates of only a few bits per minute.
Optical Waves: Optical communication systems operating in the blue-green spectrum (400–550\text{ nm}) bypass seawater’s electrical conductivity and achieve impressive throughput exceeding 10\text{ Mbps}. However, seawater is populated by organic micro-particles, phytoplankton, and suspended sediment. These particles cause severe Mie and Rayleigh scattering as well as photon absorption. Consequently, optical links are restricted to strict line-of-sight paths of less than 10–50\text{ meters} in clear, deep-ocean environments, and degrade to under 1–2\text{ meters} in turbid coastal waters.
Acoustic Waves: Unlike electromagnetic radio or light waves, acoustic waves are mechanical pressure waves. Rather than propagating through the space between molecules, sound uses the physical mass and relative incompressibility of the water column itself as a mechanical transmission medium. By compressing and expanding adjacent water molecules in longitudinal waves, sound travels vast distances with minimal energy loss, carrying subsea telemetry across tens of kilometers.

Communication Carrier Physical Wave Type Primary Failure/Attenuation Mechanism Typical Effective Range Usable Bandwidth
Radio Frequency (RF) Electromagnetic Field Ohmic dissipation via free ionic conduction (\sigma \approx 4\text{ S/m}) < 1–2\text{ meters} High (\text{MHz} to \text{GHz} range)
Optical (Blue-Green) Electromagnetic Wave (Light) Scattering by turbidity/plankton and pure water absorption < 10–50\text{ meters} (Clear) / < 1–2\text{ meters} (Turbid) Very High (> 10\text{ Mbps})
Acoustic Mechanical Pressure Wave Viscous friction and chemical relaxation of dissolved salts Kilometers (up to 20+\text{ km}) Severely Low (< 1–20\text{ kHz})

While mechanical pressure waves successfully bypass the conductive barrier of seawater, transmitting sound through a dense, thermally stratified ocean column introduces a complex physical environment governed by velocity gradients, refraction, and dynamic signal attenuation.

The Acoustic Landscape: Velocity, Refraction, and Frequency Limits

Learning Objectives

Quantify the propagation latency penalty of subsea acoustic waves compared to terrestrial electromagnetic propagation.
Calculate sound velocity variations using the Mackenzie Equation and model acoustic refraction via Snell’s Law.
Identify the physical mechanics behind the SOFAR channel and acoustic shadow zones.
Evaluate frequency-dependent acoustic absorption using Thorp’s formula and analyze wideband Doppler scaling.

Communicating underwater using acoustic waves requires navigating an operating environment defined by long delays, bending sound paths, and frequency-dependent energy loss.

The primary challenge for subsea cyber-physical systems is the dramatic reduction in propagation speed—the ocean’s “speed penalty.” Electromagnetic waves in air travel at the speed of light (c \approx 3 \times 10^8\text{ m/s}), making terrestrial latency virtually instantaneous over short to medium distances. By contrast, sound waves travel through seawater at roughly 1,500\text{ m/s}—five orders of magnitude slower.

The Subsea Latency Penalty

Consider a sensor node transmitting a data payload across a distance of 1.5\text{ kilometers}:

Terrestrial RF Signal (in Air): t_{\text{RF}} = \frac{1,500\text{ m}}{3 \times 10^8\text{ m/s}} = 0.000005\text{ seconds } (5\ \mu\text{s})
Subsea Acoustic Signal (in Seawater): t_{\text{Acoustic}} = \frac{1,500\text{ m}}{1,500\text{ m/s}} = 1.0\text{ second}

An acoustic wave takes 0.67\text{ seconds} to travel just 1\text{ kilometer} (1.0\text{ second} for 1.5\text{ km}). A simple two-way handshake between subsea nodes separated by 1.5\text{ km} consumes 2.0\text{ seconds} purely in physical transit time, rendering traditional terrestrial networking protocols ineffective.

Furthermore, sound does not travel in straight lines underwater. The speed of sound in seawater (c) varies continuously with Temperature (T in {^\circ}\text{C}), Salinity (S in Practical Salinity Units – PSU), and Depth/Pressure (z in meters), as modeled by empirical relationships such as the Mackenzie Equation:

c(T, S, z) = 1448.96 + 4.591T – 5.304 \times 10^{-2}T^2 + 2.374 \times 10^{-4}T^3 + 1.340(S – 35) + 1.630 \times 10^{-2}z

Because the ocean is thermally stratified and pressurized by depth, these velocity shifts cause acoustic rays to refract (bend) according to Snell’s Law of Refraction:

\frac{\cos \theta(z)}{c(z)} = \text{constant}

where \theta(z) is the grazing angle of the sound ray relative to the horizontal plane at depth z. Sound rays continuously curve toward regions of minimum velocity:

The SOFAR (Sound Fixing and Ranging) Channel: At depths between 800\text{ meters} and 1,200\text{ meters} in temperate oceans, solar heating decreases while hydrostatic pressure increases begin to dominate sound speed. This creates a vertical velocity minimum known as the SOFAR channel axis. Sound waves emitted inside or directed toward this layer are refracted back toward the axis, forming a natural acoustic waveguide that allows low-frequency pings to travel thousands of kilometers with minimal energy loss at ocean boundaries.
Acoustic Shadow Zones: Near the surface, steep thermal gradients (the thermocline) cause sound speed to drop rapidly with depth, bending acoustic rays downward. This leaves shallow “blind spots” where a surface vessel cannot detect or communicate with a benthic (seabed) sensor node located a few hundred meters away horizontally, because the acoustic rays curve completely away from the target. Surface (0 m) ─────── Temperature Warm (High Speed) ────────┐
\ │
\ Acoustic Rays Refract Downward │ Shadow Zone
\ │ (Acoustic Blind Spot)

SOFAR Axis (~1000 m) ──── Min. Speed Velocity Axis ────── │
/ │
/ Acoustic Rays Refract Upward │

Seabed (4000 m) ───── Pressure High (High Speed) ──────────┘

Because sound moves at only 1,500\text{ m/s}, any relative motion between a transmitter and a receiver (such as an Autonomous Underwater Vehicle moving at v = 1.5\text{ m/s}) introduces a high Doppler factor:

\Delta = \frac{v}{c} = \frac{1.5\text{ m/s}}{1,500\text{ m/s}} = 10^{-3}

In airborne RF systems, motion produces a simple carrier frequency shift (\Delta f). Underwater, this large Doppler factor induces wideband Doppler scaling, compressing or stretching the entire time-domain waveform. A 20\text{ kHz} acoustic carrier experiences a 20\text{ Hz} frequency shift, causing inter-carrier interference across Orthogonal Frequency Division Multiplexing (OFDM) subchannels unless compensated for at the receiver.

Adding to refraction and Doppler distortions is frequency-dependent absorption. As sound propagates, mechanical shear and relaxation processes absorb energy from the wave. The acoustic absorption coefficient \alpha(f) (in \text{dB/km}) for a given frequency f (in \text{kHz}) is governed quantitatively by Thorp’s Attenuation Formula:

\alpha(f) \approx \frac{0.11 f^2}{1 + f^2} + \frac{44 f^2}{4100 + f^2} + 2.75 \times 10^{-4} f^2 + 0.003 \quad [\text{dB/km}]

This absorption profile is driven by three primary chemical and physical mechanisms:

Boric Acid Relaxation (\text{B(OH)}_3): Corresponds to the first term in Thorp’s formula (\frac{0.11 f^2}{1 + f^2}). This chemical relaxation process dominates at low frequencies below 1\text{ kHz}, resulting in minimal energy loss (<0.1\text{ dB/km}).
Magnesium Sulfate Relaxation (\text{MgSO}_4): Corresponds to the second term (\frac{44 f^2}{4100 + f^2}). This mechanism dominates the mid-frequency band (1–10\text{ kHz}), where dissolved \text{MgSO}_4 molecules absorb mechanical shear energy through pressure-dependent chemical dissociation.
Viscous Water Losses: Corresponds to the high-frequency terms (2.75 \times 10^{-4} f^2 + 0.003). At frequencies above 50\text{ kHz}, physical friction between vibrating water molecules rapidly converts acoustic energy into heat (\alpha \approx 15\text{ dB/km} at 50\text{ kHz}).

Because high acoustic frequencies attenuate rapidly over short distances, long-range subsea networks (>5–10\text{ km}) are restricted to narrow, low-frequency bands (<5–10\text{ kHz}). This restricts available channel bandwidth to a few hundred hertz, keeping subsea data payloads compact.

Understanding these acoustic propagation boundaries is essential, but harnessing mechanical sound for subsea data transfer ultimately requires specialized hardware capable of converting alternating electrical energy into physical pressure pings.

Transducer Physics: Converting Electricity into Subsea Sound

Learning Objectives

Contrast electroacoustic transduction with standard airborne RF antennas.
Analyze the Sonar Link Budget Equation and acoustic reference pressure units.
Deconstruct the mechanical anatomy and material selection of a Tonpilz piezoelectric projector.
Quantify the power asymmetry between passive listening and active transmitting states.

Unlike terrestrial communications that emit electromagnetic waves from metal antennas, underwater acoustic nodes rely on electroacoustic transducers. Receivers (hydrophones) convert subsea pressure variations into electrical signals, while transmitters (projectors) perform the reverse operation—converting alternating high-voltage waveforms into physical mechanical thrust.

When quantifying underwater acoustic signals, sound pressure levels are expressed in decibels referenced to a subsea baseline pressure:

\text{dB re } 1\ \mu\text{Pa}

This reference unit (1\ \text{micropascal}) differs fundamentally from the airborne acoustic standard (20\ \mu\text{Pa}), reflecting the higher density and lower compressibility of seawater.

To evaluate whether a subsea acoustic signal can be successfully detected across an operational range, marine engineers use the Passive Sonar Link Budget Equation:

\text{SNR} = \text{SL} – \text{TL} – \text{NL} + \text{DI} \ge \text{DT}

where:

\text{SNR} is the Signal-to-Noise Ratio at the receiver (\text{dB}).
\text{SL} is the Source Level radiated by the transmitter (\text{dB re } 1\ \mu\text{Pa at } 1\text{ m}).
\text{TL} is the Transmission Loss along the path (\text{dB}), combining spherical/cylindrical geometric spreading loss and Thorp’s absorption loss (TL = k \cdot 10\log_{10}(R) + \alpha(f) \cdot R \times 10^{-3}).
\text{NL} is the ambient Noise Level from shipping, wave action, and biological sources (\text{dB re } 1\ \mu\text{Pa}).
\text{DI} is the Directivity Index of the receiving hydrophone array (\text{dB}).
\text{DT} is the Receiver Detection Threshold required to decode the modulation scheme (\text{dB}).

The workhorse of subsea acoustic projection is the Tonpilz (“Sound Mushroom”) transducer. Engineered to match the dense acoustic impedance of seawater (Z_{\text{water}} = \rho \cdot c \approx 1.5 \times 10^6\text{ Rayls}), the Tonpilz projector uses four core mechanical elements:

Piezoceramic Ring Stack (\text{PZT-4} or \text{PZT-8}): The core engine of the transducer, consisting of lead zirconate titanate ceramics operating in longitudinal expansion mode (d_{33}). When an alternating electrical voltage is applied, the ceramics physically expand and contract along their longitudinal axis.
Central Pre-Stress Bolt: Piezoceramics exhibit high compressive strength but crack under mechanical tension. A high-tensile steel rod passes through the center of the stack, placing the ceramics under a permanent mechanical pre-stress of 20–40\text{ MPa}. This ensures the ceramic rings remain under net compression during high-amplitude expansion cycles.
Flared Head Mass: A lightweight aluminum or titanium mass mounted to the front face. Its flared shape matches the high acoustic impedance of the piezoceramics to the lower impedance of seawater, efficiently transferring internal mechanical vibrations into the water column.
Heavy Tail Mass: A dense tungsten or brass mass positioned at the rear. Its high inertia forces the expansion energy of the piezoceramic stack forward through the head mass, directing acoustic energy into the water rather than radiating it backward into the housing.

The physical sequence that converts an electrical signal into an underwater longitudinal pressure wave follows five discrete steps:

Digital Baseband Generation: The node’s microcontroller synthesizes a digital bitstream, applying modulation (such as Frequency Shift Keying or Zero-Padded OFDM) to prepare the payload for the lossy subsea channel.
Power Amplification: A Class-D subsea power amplifier steps up the low-voltage baseband signal into a high-voltage alternating electrical waveform (>100\text{ V}_{\text{RMS}}).
Piezoelectric Strain Induction: The high-voltage signal enters the piezoceramic ring stack. Under the alternating potential, the ceramics strain longitudinally via the piezoelectric effect, converting electrical potential into mechanical displacement.
Inertial Momentum Redirection: The expanding ceramic stack pushes against the heavy tungsten tail mass. Because the tail mass resists motion due to its high inertia, mechanical thrust is directed forward into the flared head mass.
Impedance-Matched Pressure Emission: The head mass vibrates against the seawater interface, compressing and expanding adjacent water molecules to launch a longitudinal pressure wave into the ocean column.

This mechanical transducer architecture causes a significant asymmetry in power consumption between sending and receiving data underwater:

Operational Parameter Listening State (Passive Hydrophone Mode) Transmitting State (Active Projector Burst)
Power Consumption Range 50\text{ mW} – 500\text{ mW} 20\text{ W} – 100\text{ W}
Primary Hardware Activity Running low-noise pre-amplifiers, variable-gain amplifiers (VGAs), and DSP decoding cores. Driving piezoceramic stacks via high-voltage power amplifiers to emit high Source Levels (185\text{ dB re } 1\ \mu\text{Pa}).
Electroacoustic Efficiency High passive conversion efficiency; incoming pressure waves generate electrical signals naturally. Low electroacoustic efficiency (20%–40%); energy is lost converting electricity into physical thrust against dense water.
Energy Impact on Battery Life Low continuous power draw; permits multi-month passive listening on local power reserves. Severe pulse draw; transmitting a single short packet can consume as much energy as listening for hundreds of seconds.

Because sending an acoustic ping demands massive electrical power and incurs multi-second flight delays, organizing scattered subsea nodes into a reliable network requires protocols designed specifically for the spatio-temporal constraints of the ocean medium.

Underwater Network Topologies and Smart Routing (DBR)

Learning Objectives

Explain the spatial-temporal uncertainty problem and the failure of terrestrial CSMA/CA underwater.
Map the multi-tier vertical deployment pipeline from benthic seabed sensors to surface gateway buoys and satellites.
Analyze Depth-Based Routing (DBR) logic and calculate the dynamic holding timer equation.

Designing an Underwater Acoustic Sensor Network (UWSN) requires overcoming the spatial-temporal uncertainty problem. On land, radios use Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) to listen to the channel before transmitting. If the air is quiet, the node transmits immediately.

In seawater, CSMA/CA fails entirely. Because sound travels at only 1,500\text{ m/s}, a node can listen to the water directly around itself, hear total silence, and transmit—unaware that an acoustic wave emitted seconds ago by a node 1.5\text{ km} away is already en route. This creates the “Silent Receiver” blindspot: collisions occur at the receiver’s physical location when acoustic waves arrive simultaneously, regardless of whether the channel felt clear at the transmitter when it fired.

   Node A (Transmits at t = 0 s)                  Node B (Receiver)                 Node C (Transmits at t = 0.6 s)
      │                                              │                                    │
      ├──[ Acoustic Wave Launches ]                  │                                    │
      │  \                                           │                                    │
      │   \ Acoustic Wave Propagating                │                                    │
      │    \                                         │            [ Senses Channel Idle ]─┤ (Silent Local Channel!)
      │     \                                        │           /                        │
      │      \                                       │          / Acoustic Wave Launches  │
      │       \                                      │         /                          │
      │        ▼                                     ▼        ▼                           │
      │    (t = 1.0 s)                          [ COLLISION! ]                            │
      │                                         At Receiver B                             │

To route data reliably despite these delays, underwater networks use a vertical multi-hop deployment pipeline:

              [ Satellite Network (Iridium / LEO) ]
                                ▲
                                │ Orbital RF Uplink
                                ▼
             [ Surface Gateway Buoy Platform ] ── (Solar Arrays, GPS & RF Modems)
                                ▲
                                │ Subsea Acoustic Link (~1,500 m/s Sound Speed)
                                ▼
             [ Mid-Water Column Moored Nodes ] ── (Suspended via Buoys & Tension Cables)
                                ▲
                                │ Multi-Hop Acoustic Links
                                ▼
             [ Benthic Seabed Sensor Node Array ] ── (Anchored to Seabed Floor)

Benthic Seabed Nodes: Fixed sensor packages anchored to the seafloor continuously log physical variables (such as seismic activity, temperature, and hydrostatic pressure).
Mid-Water Column Moored Nodes: Suspended along vertical tension cables at varying depths, these nodes route data upward while monitoring mid-water conditions.
Surface Gateway Buoy Platform: A floating buoy equipped with a dual subsea hydrophone array, solar panels, and satellite transceivers. It receives acoustic pings from below, translates the data into radio frequency signals, and forwards the payload to land facilities via satellite uplinks (such as Iridium or LEO constellations).

To navigate this vertical pipeline without maintaining complex routing tables that drain battery reserves, UWSNs utilize Depth-Based Routing (DBR). DBR is a stateless, pressure-driven routing protocol that routes data upward using the physical stratification of the ocean.

Surface Gateway Buoy
▲
│ (Shortest t_hold = Transmits First!)
[ Node A: 100 m Depth ] ◄── Shallower Candidate Relay
▲
│ (Calculates t_hold)
[ Node B: 300 m Depth ] ◄── Deeper Transmitting Node (Header Depth = 300 m)
x (Packet Dropped!)
[ Node C: 450 m Depth ] ◄── Deeper Neighbor

The step-by-step decision-making logic at an individual sensor node proceeds as follows:

Step 1: Hydrostatic Depth Sensing: Every node reads its physical depth below the surface (z_{\text{current}}) using an integrated piezoresistive pressure sensor.
Step 2: Header Depth Embedding: When a node generates or forwards a data packet, it embeds its depth (z_{\text{current}}) directly into the packet header and broadcasts the acoustic ping.
Step 3: Neighborhood Depth Filtering: Neighboring nodes that hear the acoustic transmission inspect the depth value in the header. If a receiving neighbor is deeper than z_{\text{current}}, it drops the packet. If the neighbor is shallower (z_{\text{neighbor}} < z_{\text{current}}), it qualifies as a potential upward relay.
Step 4: Holding Timer Calculation (t_{\text{hold}}): To prevent multiple shallow neighbors from retransmitting simultaneously and causing collisions, each candidate relay calculates a local back-off holding timer:

t_{\text{hold}} = \tau_{\text{max}} \cdot \left(1 – \frac{\Delta z}{R_{\text{range}}}\right)

where:

t_{\text{hold}} is the local back-off delay time calculated by the candidate node before retransmitting (\text{seconds}).
\tau_{\text{max}} is a pre-configured maximum allowable holding delay (\text{seconds}).
\Delta z = z_{\text{current}} – z_{\text{neighbor}} is the vertical depth difference (vertical advancement) between the transmitter and the local candidate node (\text{meters}).
R_{\text{range}} is the maximum single-hop acoustic transmission range of the node’s transducer (\text{meters}).

The candidate node closest to the surface (largest vertical advancement \Delta z) yields the smallest t_{\text{hold}} value, allowing its timer to expire first.

Step 5: Redundant Transmission Suppression: The candidate node with the shortest holding time retransmits the packet first. When deeper neighboring candidates hear this retransmission, they recognize that the packet has already advanced upward and cancel their pending timers, saving battery power across the network.

While theoretical routing protocols organize subsea data traffic, real-world sensor packages must also withstand the immense hydrostatic pressures and corrosive chemistry of the abyssal depth to maintain functional networks over multi-year deployments.

Real-World Application and Abyssal Survival

Learning Objectives

Analyze the operational mechanics and event-trigger logic of the DART Tsunami Early Warning System.
Evaluate mechanical hardening strategies used to withstand abyssal hydrostatic pressures.
Compare biofouling mitigation technologies for subsea sensor deployments.

The life-saving value of subsea acoustic networks is demonstrated in the DART (Deep-ocean Assessment and Reporting of Tsunamis) early warning platform. Deployed across seismic ocean basins, DART relies on physical acoustics, dual-mode power management, and satellite communications to warn coastal populations of impending tsunamis.

Case Study: The DART Tsunami Detection Sequence

[ Seafloor Tectonic Displacement ]
│
▼
[ Benthic Bottom Pressure Recorder (BPR) ] ── (Detects > 3 cm pressure shift)
│
▼ (Fires 15–18 kHz Acoustic Telemetry Burst)
[ Surface Gateway Buoy Hydrophone ] ── (Receives acoustic payload in ~4.0 s)
│
▼ (Relays payload via L-Band Satellite Uplink)
[ Civil Emergency Warning Centers ] ── (Issues public alerts within minutes)

Continuous Subsea Monitoring: A Bottom Pressure Recorder (BPR) anchored on the abyssal seafloor (up to 6,000\text{ meters} deep) uses a precision quartz crystal resonant pressure sensor to track water column height every 15 seconds.
Low-Power Standby vs. Trigger Mode: Under normal ocean conditions, the BPR operates in a low-power standby state (<1\text{ mW}), logging baseline tidal trends locally and sending check-in pings every few hours to conserve battery life.
Event Detection Logic: An onboard algorithm continuously filters real-time pressure readings against predicted astronomical tides. If a passing tsunami wavefront shifts the water column pressure by more than 3\text{ cm} of water height equivalent, the node switches to Emergency Event Mode.
Acoustic Telemetry Burst: The BPR powers its subsea power amplifier (40\text{ W} output), firing an acoustic telemetry payload (15–18\text{ kHz}) upward through thousands of meters of water (t_{\text{flight}} \approx 4.0\text{ seconds}).
Satellite Relay to Civil Defense: The surface buoy receives the acoustic pings, converts the data to radio frequency signals, and routes an emergency alert through an Iridium satellite link to civil defense centers—delivering basin-wide warnings within minutes of seafloor movement.

Surviving deep-subsea deployments like DART requires mechanical and chemical engineering capable of withstanding the ocean environment:

Material Selection (Hydrostatic Pressure Hardening): Hydrostatic pressure increases linearly by 1\text{ atmosphere} (0.1013\text{ MPa}) every 10\text{ meters} of depth. At abyssal depths (6,000\text{ meters}), static pressure reaches 60\text{ MPa} (\approx 8,700\text{ psi}). To prevent structural collapse, deep-ocean pressure housings are machined from Grade 5 Titanium (\text{Ti-6Al-4V}) or Polyether Ether Ketone (PEEK). Grade 5 Titanium delivers a high yield strength (\sigma_y \approx 830\text{ MPa}) combined with a low density (\rho \approx 4.43\text{ g/cm}^3) and an unreactive titanium dioxide (\text{TiO}_2) passivating film that makes it immune to saltwater pitting corrosion.
Sealing Architecture: To prevent water ingress under extreme hydrostatic pressure, housing endcaps use dual radial O-ring configurations made from 70-to-90 durometer elastomeric materials (such as Nitrile/Buna-N or Viton/FKM), paired with hard polymer back-up rings to prevent the elastomeric seals from extruding into mechanical gaps under high pressure.
Anti-Fouling Systems: Within weeks of deployment, marine organisms begin colonizing exposed surfaces. Microscopic bacterial slime, barnacles, and tube worms coat sensor faces, dampening acoustic signals and altering the resonant frequency of piezoceramic transducers. Subsea systems use three main defense mechanisms:
1. Copper-Nickel (\text{CuNi 90/10}) Alloys: Naturally release localized copper ions that deter marine organisms from settling on metal surfaces.
2. Deep-UV (\text{UV-C}) LED Irradiation: Low-power subsea LEDs emit localized ultraviolet light (265–280\text{ nm}) across optical and acoustic faces, disrupting the cellular DNA of settling microbes without requiring toxic chemical biocides.
3. Acoustic-Grade Polyurethane Encapsulation: Transducers are vacuum-potted in acoustic polyurethanes engineered to match the density and sound velocity of seawater (c \approx 1,500\text{ m/s}), blended with foul-release silicone additives that prevent barnacle adhesion.

Summary: The Mechanical Defense Matrix

Material Selection Layer: Grade 5 Titanium (\text{Ti-6Al-4V}) and PEEK thermoplastics provide structural resistance against abyssal hydrostatic pressures (60\text{ MPa}) while preventing saltwater galvanic corrosion.
Sealing Architecture Layer: Dual radial O-rings made from 70–90 durometer Viton/Nitrile paired with anti-extrusion back-up rings preserve vacuum-sealed internal environments against high-pressure water ingress.
Anti-Fouling Systems Layer: Copper-Nickel (\text{CuNi 90/10}) structural elements, localized deep-UV (\text{UV-C} 265–280\text{ nm}) LED arrays, and density-matched polyurethane potting protect sensitive transducer faces against marine growth.

Conclusion

Conquering the subsea communication paradox requires an integrated engineering approach that spans physical chemistry, electroacoustics, material science, and protocol design. By replacing electromagnetic waves with mechanical sound, converting electrical signals into pressure pings through Tonpilz transducers, routing data upward using pressure-driven protocols like Depth-Based Routing, and hardening sensor packages inside titanium pressure vessels, marine cyber-physical systems transform the ocean into a connected digital domain. These acoustic sensor networks serve as an invisible digital nervous system across the world’s oceans—monitoring marine ecosystems, safeguarding offshore energy infrastructure, and delivering early warnings for oceanic hazards.
