1. Introduction: The Vision of the Resilient Microgrid
The modern power landscape is defined by “fragile dependency”—a precarious reliance on legacy centralized architectures that are vulnerable to systemic failure, economic volatility, and physical disruption. When the macro-grid fails, traditional solar installations often become useless, lacking the intelligence to operate without a reference signal from the utility. The Resilient Microgrid Utility Bundle is engineered to catalyze a transition toward “anti-fragile community resilience,” where energy is no longer a centralized commodity, but a locally managed, sovereign resource.
By deploying edge-compute hardware at the residential and municipal level, communities can link disparate solar and battery assets into a unified, self-governing network. This system allows for the autonomous capture, translation, and sharing of power, ensuring that critical infrastructure remains energized through local intelligence rather than remote permission.
Primary Goal: To transform fragmented hardware into a unified, sovereign energy network that autonomously negotiates local power distribution, eliminates waste via intelligent load routing, and maintains operational continuity during total macro-grid or internet failures.
This journey from raw solar potential to community-scale resilience begins with the physical interface between the system’s “brain” and the electrical hardware.

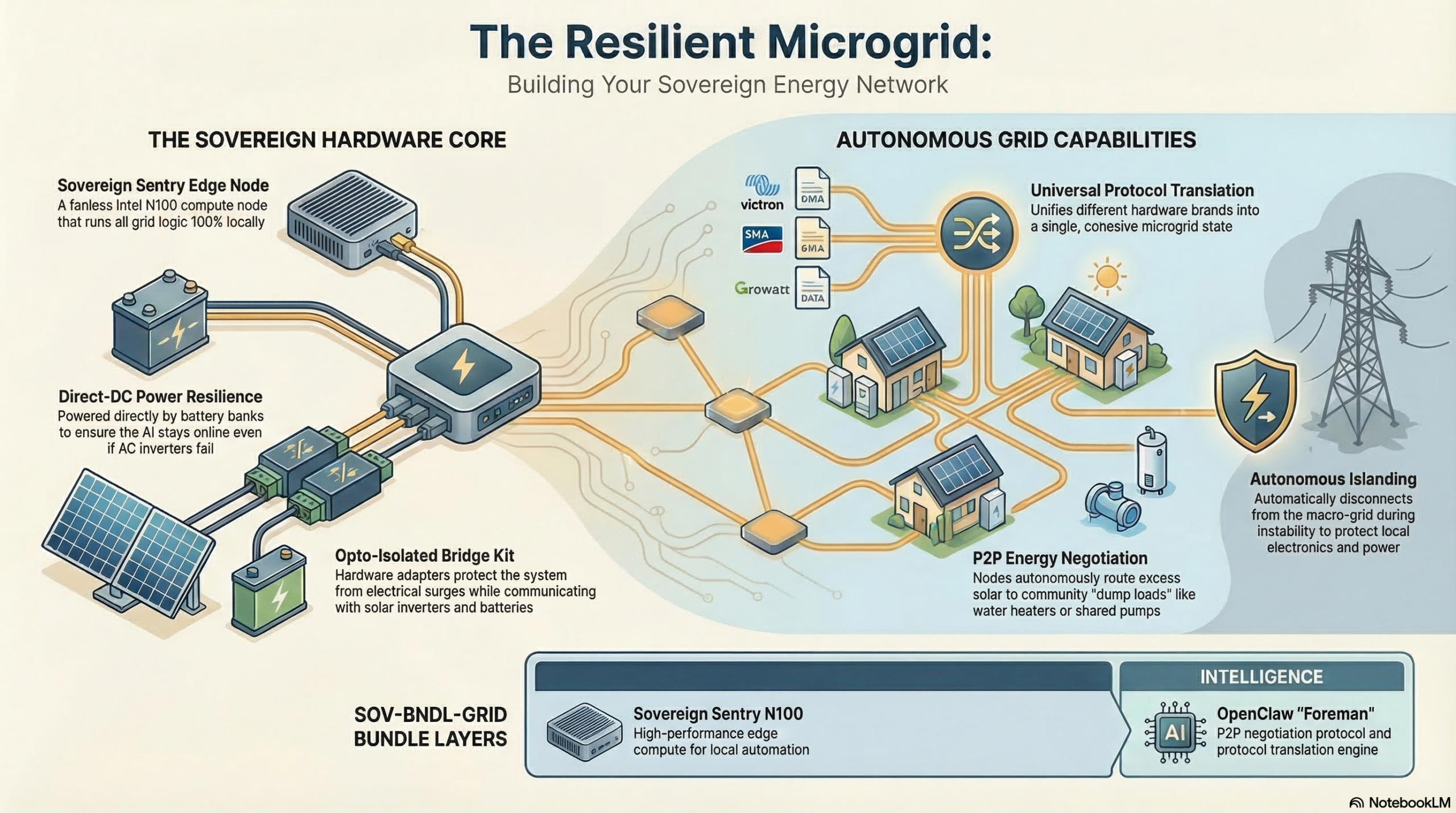

2. Phase I: Physical Interfacing (The Senses)
Before intelligent negotiation can occur, the system must establish high-fidelity “senses” to monitor energy states. This requires a physical interface between the Sovereign Sentry node and the site’s solar hardware.
| Component | Function | Resilience Benefit |
| Sovereign Sentry Node | Industrial Edge Compute (Intel N100, 16GB RAM, 500GB NVMe) running RIOS Core. | Local execution of AI and logic; eliminates cloud latency and “kill-switch” dependencies. |
| Solar/Battery Bridge Kit | Opto-isolated RS485 and CAN Bus adapters for inverter/BMS communication. | Physical opto-isolation protects the Sentry brain from high-voltage surges up to 3kV. |
| DC-DC Step-Down Converter | Ruggedized 12V/24V/48V to Sentry power interface. | Allows the “brain” to run directly off the battery bank, bypassing AC inverter failures. |
By wiring the system directly to the DC battery bank, the architect ensures that the intelligence layer survives even if the primary AC power electronics fail.
——————————————————————————–
3. Phase II: Protocol Translation (The Universal Language)
Legacy hardware manufacturers utilize proprietary “languages” that prevent interoperability. A Growatt inverter cannot natively coordinate with a Victron or SMA system. The OpenClaw Foreman agent solves this by acting as a hardware-agnostic translator, abstracting the physical layer into a unified data model.
The Transformation Engine:
RAW SIGNALS [Modbus RTU / CAN Bus] \rightarrow FOREMAN ENGINE [Scan / Map / Translate] \rightarrow UNIFIED STATE [Local Dashboard]
Future-Proofing through Abstraction: The Foreman agent performs an automated “Discovery Phase,” scanning connection ports and loading register maps for brands including Victron, SMA, Growatt, EG4, and Sol-Ark. This software layer ensures the microgrid is future-proof; as a community adds new hardware generations over the next decade, the Foreman simply adds new maps to the unified state, maintaining cohesive operation across disparate hardware ecosystems.
4. Phase III: Mesh Networking (The Community Conversation)
Resilience is compromised if the system requires the global internet—a primary point of failure—to function. Instead, the Sentry node establishes a presence on a local town mesh network via Wi-Fi or LoRaWAN to facilitate sovereign communication.
- Identity Minting: The node utilizes a Cryptographic Node Key (a unique SHA-256 hash) to unlock the local Docker runtime and initialize its services.
- Sovereign Verification: The node presents its X.509 Mesh Identity Certificate to the network. This digital passport establishes a hardware root of trust, ensuring only verified nodes can participate in the energy mesh.
- Discovery Phase: The Sentry pings the local mesh to identify neighboring Foreman nodes at local farms, residences, or municipal buildings.
- Mesh Peering: A secure P2P connection is established, allowing nodes to share State-of-Charge (SoC) metrics without data ever leaving the local community network.
——————————————————————————–
5. Phase IV: The Negotiator Protocol (The Decision Engine)
The Grid Negotiator Protocol is the system’s autonomous decision engine. It replaces passive consumption with active, strategic energy management using P2P logic.
Scenario: The Farm and the Clinic
- The Situation: It is 1:00 PM on a clear day. Node A (a local farm) has reached 100% battery capacity. Under legacy architectures, this excess solar would be wasted or sold back to the utility for pennies. Meanwhile, Node B (the town clinic) is experiencing high demand and rapidly depleting its batteries.
- The Negotiation: Node A’s Negotiator Protocol detects Node B’s low State-of-Charge over the mesh. It initiates a P2P trade.
- The Outcome: Node A triggers a local smart relay to route its excess production into a shared community asset—such as the clinic’s thermal water boiler. The energy is “stored” as heat, providing immediate utility to the clinic and maximizing the community’s total energy harvest.
——————————————————————————–
6. Phase V: Routing and Dump Loads (The Action)
The final phase translates digital decisions into physical movement of energy. Using the Node-RED Logic Engine, the system executes one of two primary “Action Modes”:
- Dump Load Routing: This is the primary mechanism for community anti-fragility. When primary batteries are full, the system redirects excess energy to “non-critical” but essential loads, such as agricultural pumps or communal thermal storage, rather than curtailing production.
- Autonomous Islanding: This is the system’s defensive posture. If the Foreman detects macro-grid frequency anomalies or brownouts, it instantly commands the inverter to disconnect. The home “islands” immediately, running exclusively on local solar/battery power to protect sensitive electronics and maintain stability.
——————————————————————————–
7. System Safeguards (The Shield)
To maintain the integrity of the microgrid, the system utilizes an industrial-grade security matrix to mitigate electrical, mechanical, and digital threats.
| Risk ID | Threat | Consequence | Automated Defense |
| R-VOLT-01 | Ground Loops / Surges | High-voltage shorts “frying” the Sentry brain. | Opto-isolation: 3kV physical barrier on all RS485 communication lines. |
| R-LOG-01 | Relay Chatter | Rapid state-switching from cloud cover wearing out mechanical relays. | Hysteresis Enforcement: Node-RED logic strictly mandates a 5-minute minimum state-hold. |
| R-SEC-01 | Grid Spoofing | Malicious actors broadcasting fake data to steal community energy. | Hardware Root of Trust: X.509 certificates ensure only verified nodes can negotiate loads. |
Final Synthesis: The transition from a passive consumer to a Sovereign Powerhouse is achieved by integrating these five phases into a single, cohesive architecture. By decoupling energy management from failing state infrastructure and moving intelligence to the edge, the Resilient Microgrid Utility Bundle does more than provide power—it provides community-scale autonomy. Through hardware abstraction, local mesh communication, and P2P negotiation, we replace fragile dependency with a self-healing, anti-fragile energy reality.
